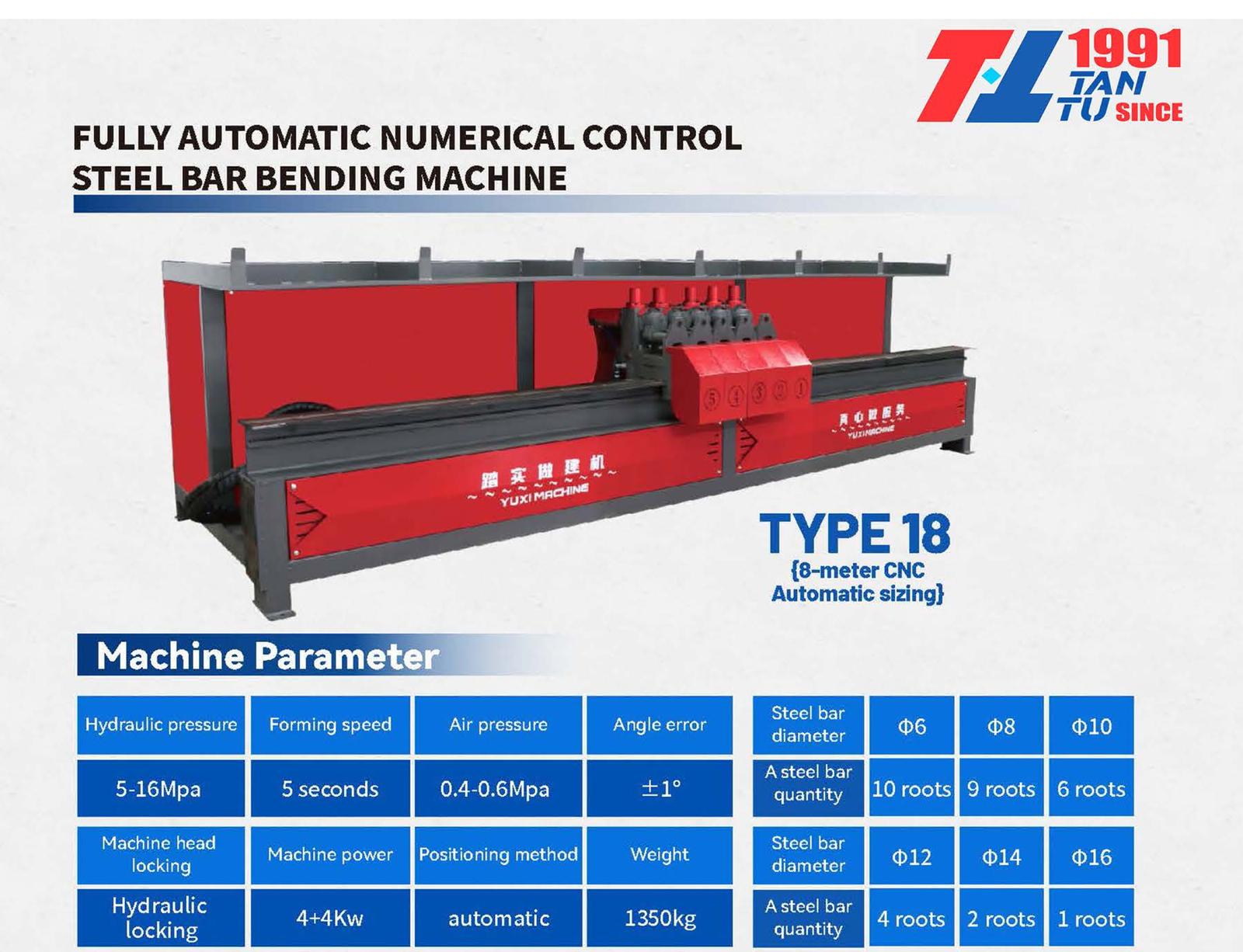

Product Overview
The fully automatic numerical control steel bar bending machine is used for automatic sizing and bending of straight rebar. It supports multiple bar diameters and is suitable for batch production of construction reinforcement shapes.
Key Features
- 8-meter CNC automatic sizing options
- Hydraulic locking machine head
- Automatic positioning for repeatable forming
- Angle error controlled within +/-1 degree
Technical Parameters
| Model | Hydraulic Pressure | Forming Speed | Air Pressure | Angle Error | Power | Positioning | Weight | Bar Quantity Range |
|---|---|---|---|---|---|---|---|---|
| Type 20 | 5-16MPa | 5s | 0.4-0.6MPa | +/-1 degree | 4+4KW | Automatic | 1400kg | 6mm:10 roots; 8mm:9 roots; 10mm:6 roots; 12mm:5 roots; 14mm:3 roots; 16/18mm:1 root |
| Type 25 | 5-16MPa | 5s | 0.4-0.6MPa | +/-1 degree | 5.5+5.5KW | Automatic | 1800kg | 6mm:10 roots; 8mm:8 roots; 10mm:6 roots; 12mm:5 roots; 14mm:3 roots; 16mm:2 roots; 18/20/22mm:1 root |
Applications
- Building construction and rebar processing yards
- Bridge, tunnel, highway, railway, airport, and power station projects
- Prefabricated reinforcement cage and stirrup production
- Steel processing plants and construction-site rebar preparation
Selection Notes
- Choose Type 20 for bars up to 20mm according to quantity requirements
- Choose Type 25 for larger bending range and heavier structure
- Confirm steel bar diameter, bar quantity per bend, and required angle range
Service Support
TANTU supports model selection, voltage confirmation, configuration matching, production follow-up, packing, shipment communication, spare parts support, and after-sales guidance. Please send the rebar diameter, material grade, required shape, production capacity, voltage, and destination country for a practical quotation.
